Application Description
Introducing the DOmini, a cutting-edge management software digital oscilloscope designed to cater to a wide range of users, including students, amateur radio enthusiasts (such as those using Arduino), experimental researchers, and electronic engineers. The DOmini is packed with a comprehensive suite of features that make it an indispensable tool for signal analysis and electronic experimentation.
Key Features of the DOmini Digital Oscilloscope
- Multi-Channel Measurement: Equipped with 6 measuring channels, including 4 analog and 2 digital channels, the DOmini offers versatility in capturing and analyzing signals.
- Versatile Measurement Modes: The oscilloscope supports 4 measurement modes: single, normal (standby), auto, and recorder, allowing users to tailor their approach to various experimental needs.
- Event Triggering: Trigger events from data capture to the occurrence of the event, ensuring precise analysis of signal changes.
- Real-Time Fourier Analysis: Perform real-time Fourier analysis to understand the frequency components of your signals instantly.
- Extensive Memory Capacity: With a waveform memory volume of 13,200 measurements (up to 26,400 for logic analyzer), the DOmini can store a vast amount of data for later analysis.
- High-Speed Measurements: Achieve between 5,000 to 1,000,000 measurements per second on analog channels, and 5,000 to 12,000,000 on digital channels, ensuring you capture every detail of your signals.
- Power Supply Options: Available voltages include +3.3V and +5V, catering to a variety of electronic components and devices.
- Probe Calibration: The DOmini allows for the calibration of probes and the establishment of custom units, enhancing measurement accuracy.
- Probe Compatibility: Compatible with standard oscilloscope probes of x1 and x10, making it easy to integrate into existing setups.
- Voltage Measurement Range: Measure voltages ranging from ±5V, 0 ÷ 10V (±15V, 0 ÷ 30V) with an x1 probe, covering a broad spectrum of electronic signals.
- High-Resolution ADC: A 10-bit resolution ADC ensures detailed and accurate signal representation.
- PWM and Digital Interfaces: Features 4 digital inputs/outputs for PWM, along with digital interfaces such as SPI, I2C, UART, and 1-WIRE, enabling versatile control and testing of digital devices.
Applications of the DOmini Digital Oscilloscope
- Signal Analysis: Conduct interim analysis of both analog and digital signals to troubleshoot and optimize your electronic projects.
- Frequency Analysis: Utilize fast Fourier transform for comprehensive frequency signal analysis, ideal for understanding signal behavior over time.
- Device Control: Control external devices via 4 I/O ports, expanding the capabilities of your experimental setups.
- PWM Signal Generation: Generate PWM signals ranging from 3Hz to 10MHz, useful for a variety of applications including motor control and LED dimming.
- IC Testing: Test integrated circuits with digital interfaces like SPI, I2C, UART, and 1-WIRE, ensuring the functionality and performance of your components.
- Power Supply: Use the DOmini as a source of +3.3V and +5V (up to 30mA) to power your circuits during testing and experimentation.
- Data Acquisition: Connect various sensors such as temperature, humidity, and irradiance sensors to the DOmini for comprehensive data acquisition and analysis.
- High-Resistance State Detection: Detect the high-resistance state of input/output ports (Z-state), crucial for diagnosing and troubleshooting electronic circuits.
The DOmini digital oscilloscope is more than just a measurement tool; it's a complete solution for anyone involved in electronics, from hobbyists to professionals. Its robust features and wide range of applications make it an essential addition to any electronics lab or workshop.

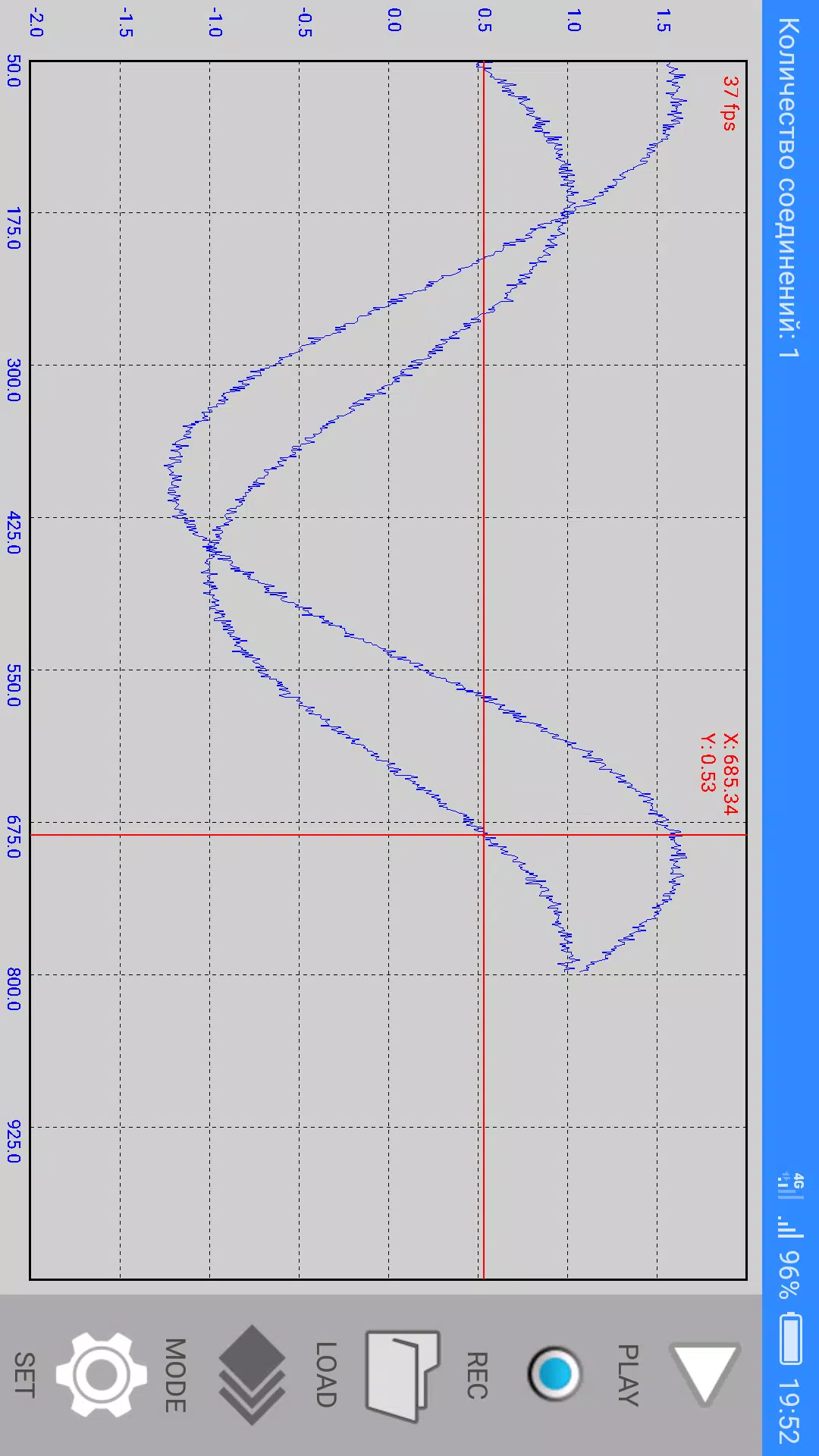

Screenshot
