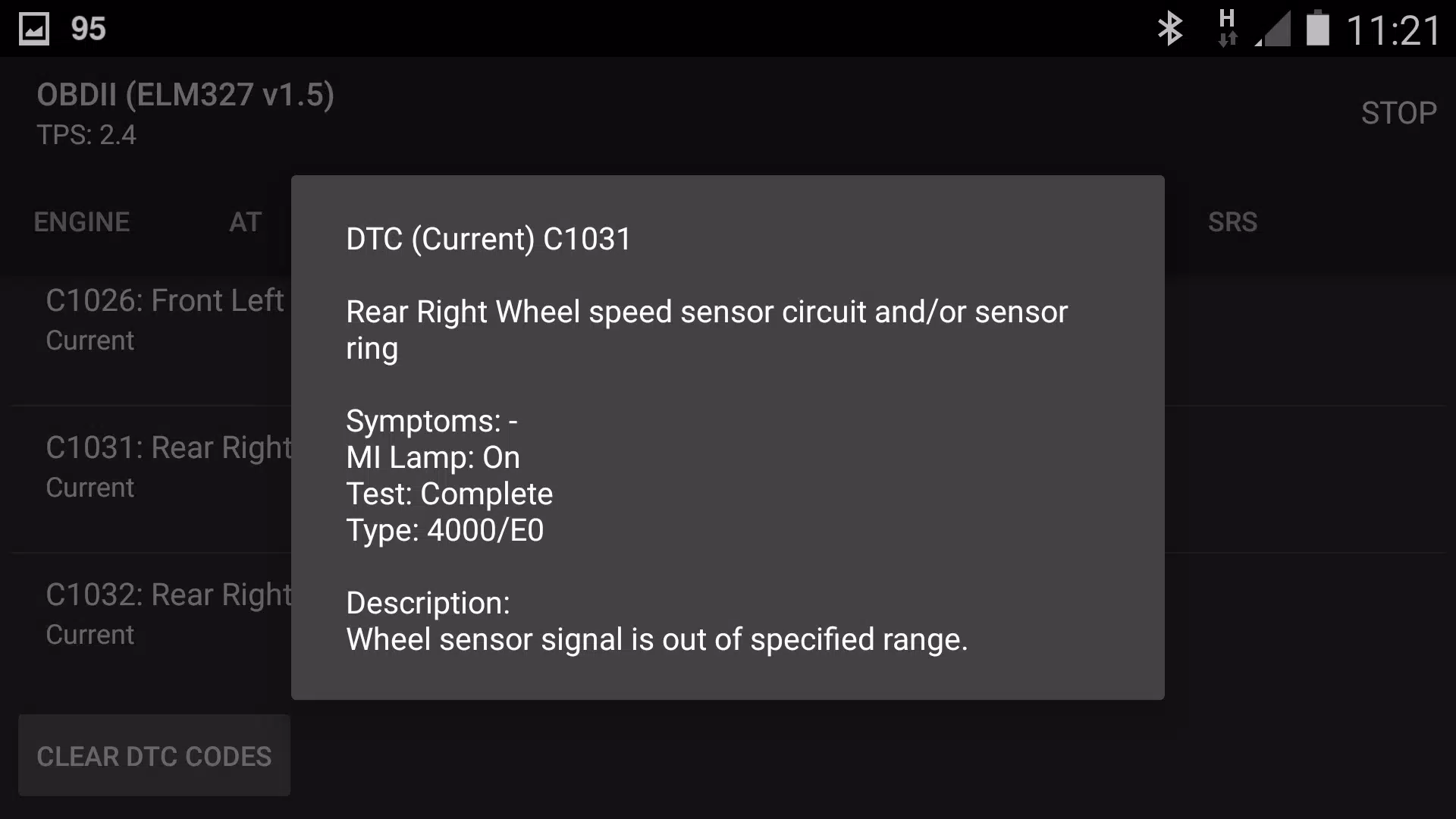

Harness the power of the ELM327 to delve into the Diagnostic Trouble Codes (DTCs) from your Suzuki's control modules with ease. The SZ Viewer A1 software, specifically designed for Suzuki vehicles, leverages both K-Line and CAN bus protocols in addition to standard OBDII communications. This robust application is your go-to tool for reading and resetting DTCs, covering not only the basic codes but also the extended and historical ones across numerous Suzuki control modules.
Even if you're driving a Japanese Domestic Market (JDM) Suzuki that doesn't adhere to OBDII standards, SZ Viewer A1 has got you covered. To make the most of this tool, you'll need an ELM327 adapter, preferably a Bluetooth or Wi-Fi version 1.3 or newer. Be cautious, though—avoid using counterfeit versions like the so-called v2.1 or some v1.5 ELM327 adapters, as they lack the necessary command support for this application.
It's important to note that older Suzuki models from before the year 2000, which use the SDL protocol with 5V levels on pin #9 of the OBDII connector, are not compatible with the ELM327 due to physical differences.

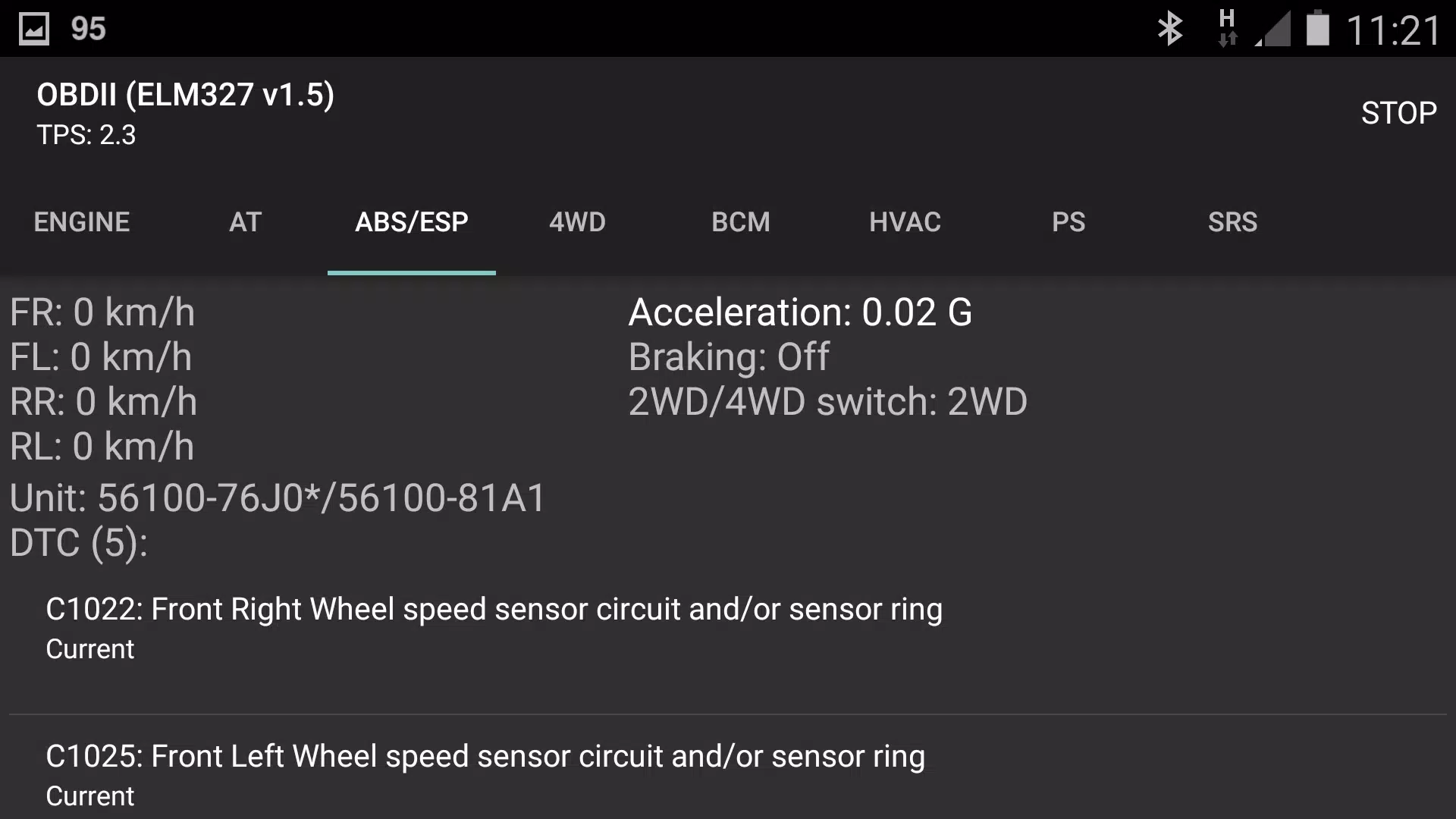

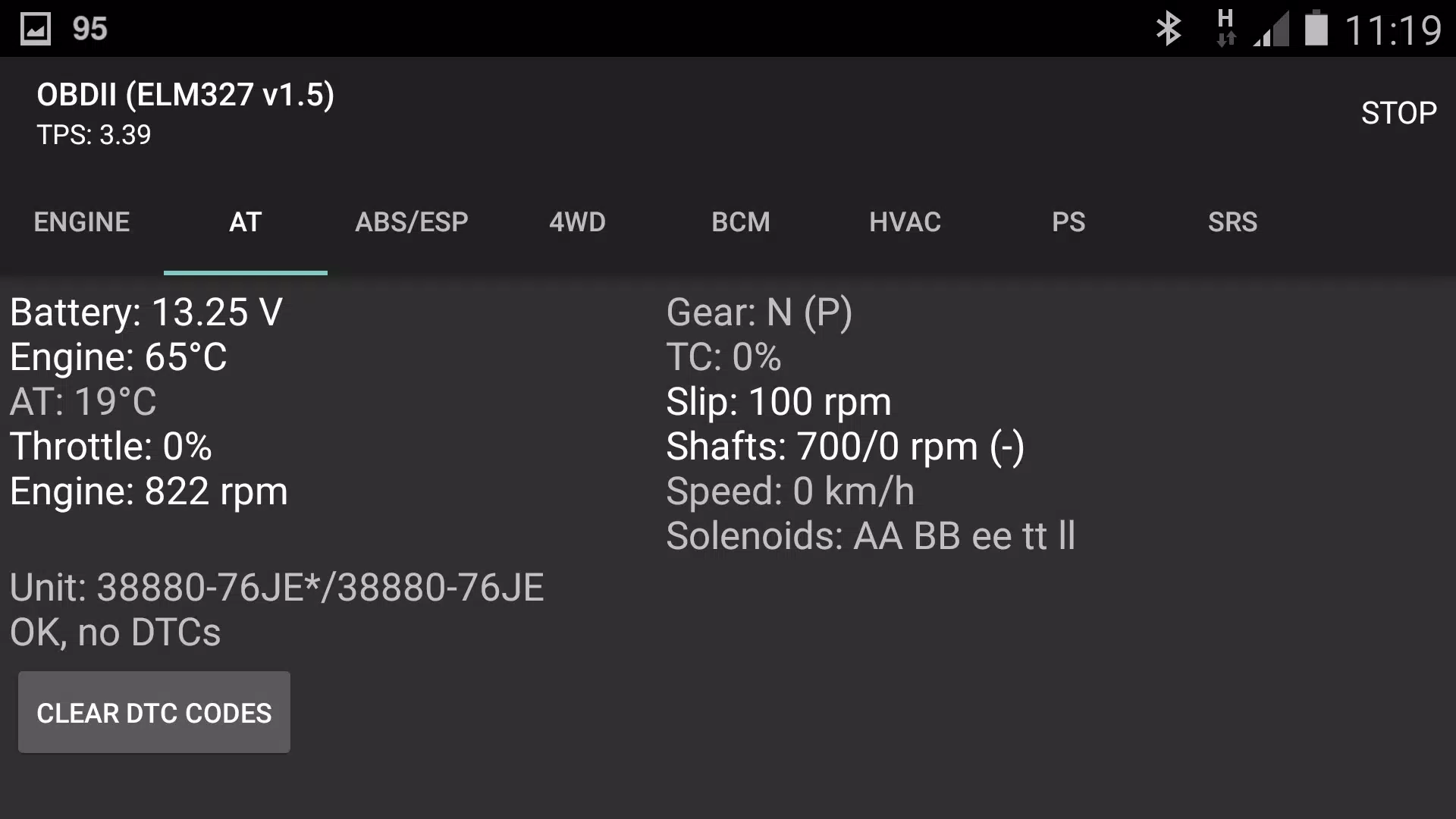

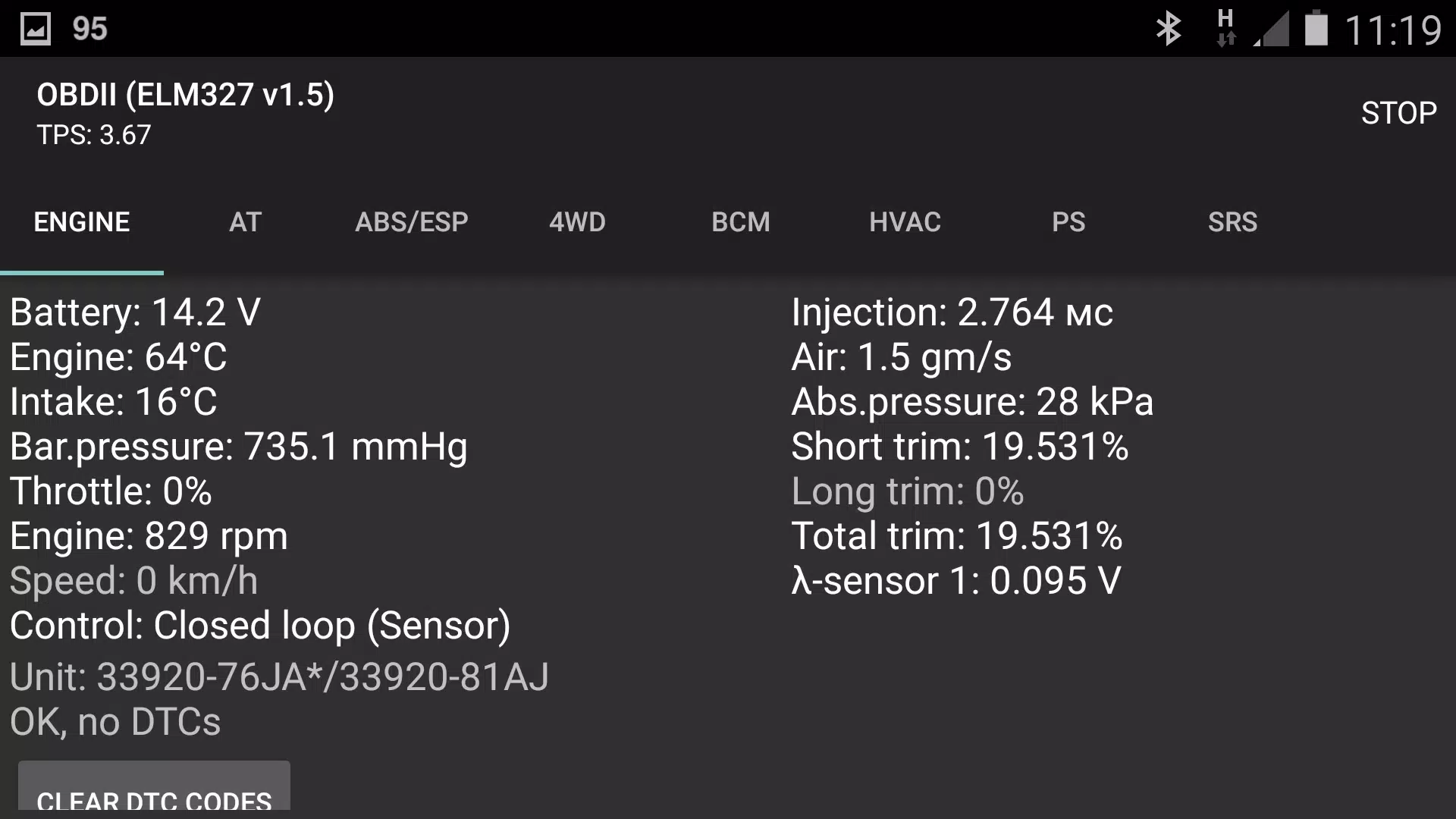

With SZ Viewer A1, you gain the ability to diagnose and clear DTC errors from a wide array of control modules, including those for the powertrain, engine, automatic transmission/continuously variable transmission (AT/CVT), anti-lock braking system/electronic stability program (ABS/ESP), supplemental restraint system (SRS), air conditioning/heating, ventilation, and air conditioning (AC/HVAC), body control module (BCM), power steering (PS), electronic module control device/four-wheel drive/active headlight (EMCD/4WD/AHL), and tire pressure monitoring system (TPMS). Keep in mind that the availability of these modules can vary from one vehicle to another.
When diagnosing an HVAC module, you might encounter DTCs like B1504 or B150A. These codes could appear due to low illumination of the sunload sensor during the diagnostic process. Rest assured, this does not indicate a malfunction of the sunload sensor itself.
